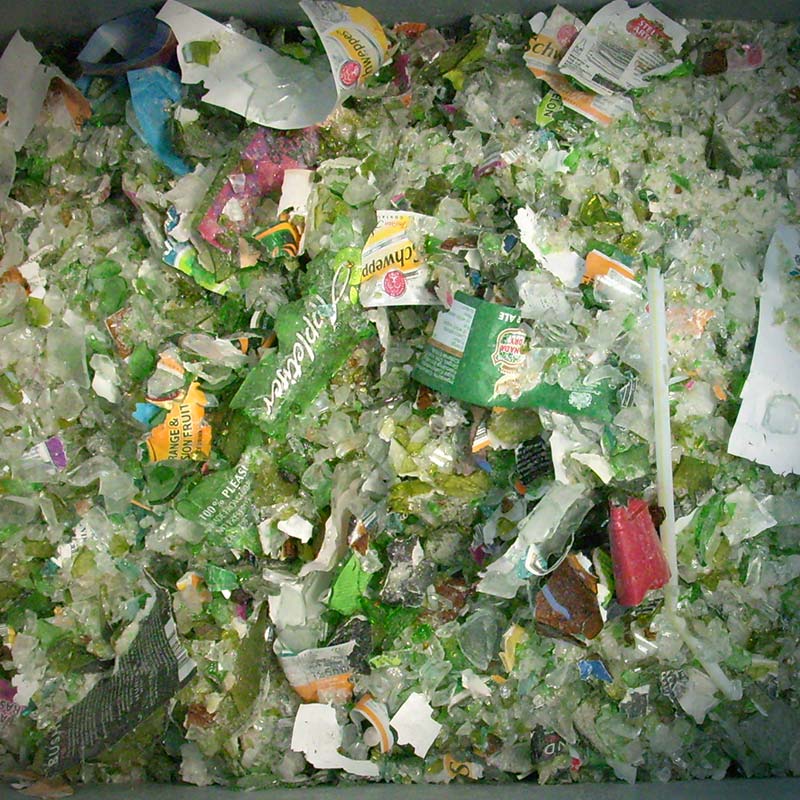

Unscreened

Products

Unscreened

  • Implosion only
  • Mixture of sizes of sharp free glass cullet from <12mm on standard Imploder settings
  • Non-glass contamination remains the same as it was in the feedstock, glass liberated from these items during the Implosion process.
  • Non-glass can be easily separated post process such as caps, labels and corks from a container glass feedstock for example.

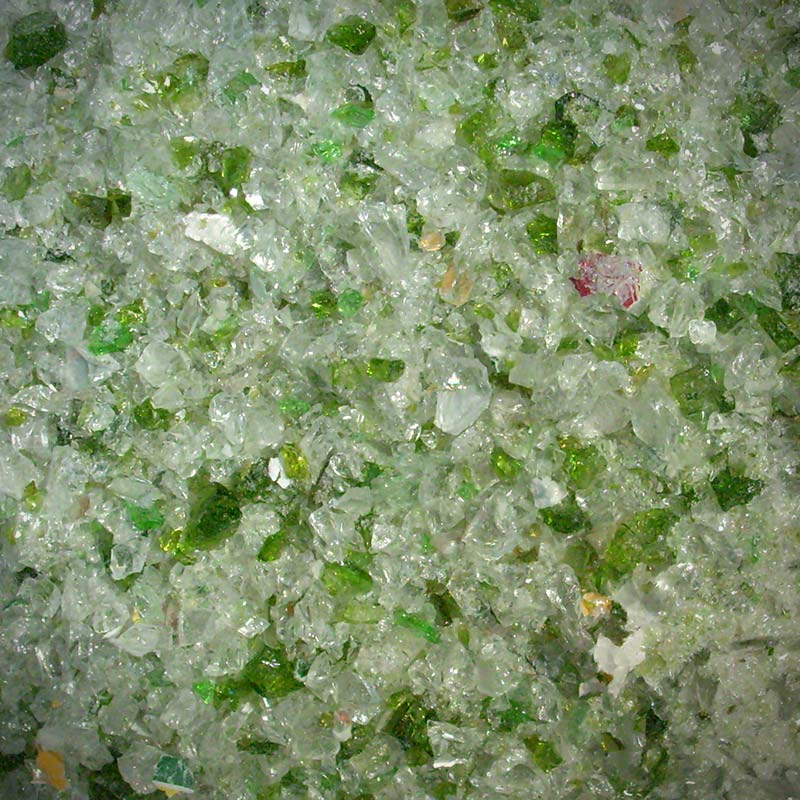

Screened Coarse

Products

Screened Coarse

Example size: 8-12mm

  • Imploded and screened
  • Screened at 12mm (dependant on contamination levels) the majority of non-glass contamination can be removed.
  • Further screening can separate the glass in to additional size fractions.

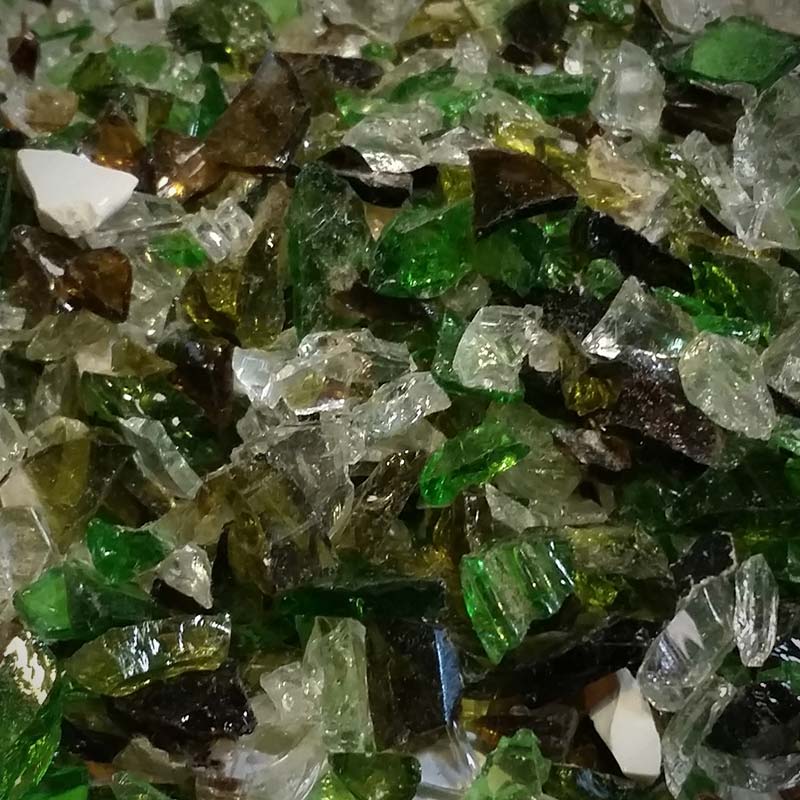

Density Separated

Products

Density Separated

Example size: +10mm (light fraction removed)

  • Imploded, screened and air density separated
  • Glass is subjected to air density separation
  • Material must be screened before density separation
  • Light fraction and glass components are separated from each other leaving a much cleaner product.

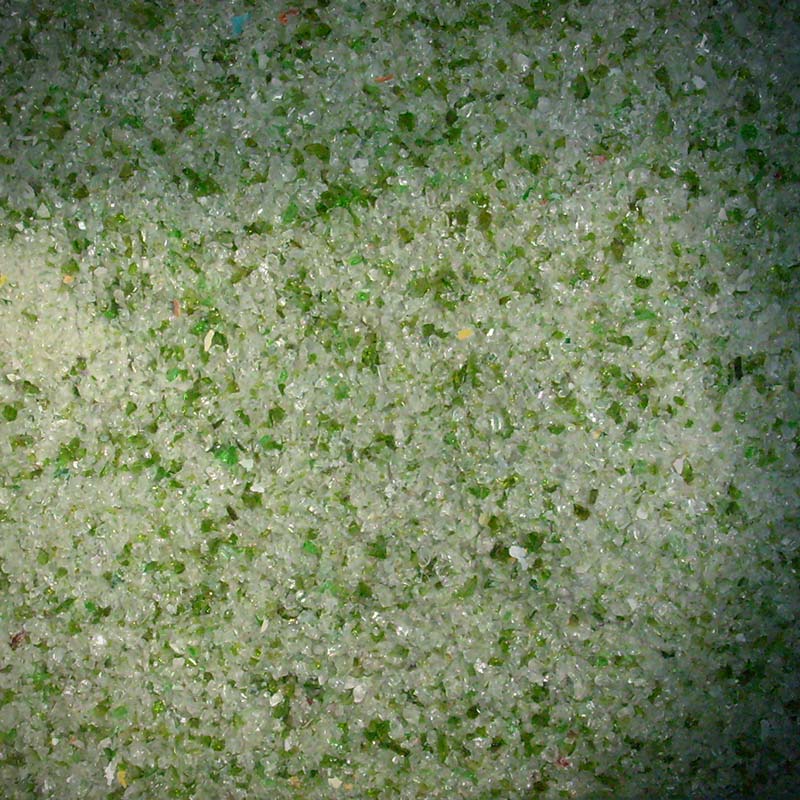

Screened Fine Product

Products

Screened Fine Product

Example size: <5mm

  • Imploded and screened
  • Almost all non-glass contamination is removed at this fraction, only minor amount of light fraction material remains.
  • Air density separation can remove remaining light fraction

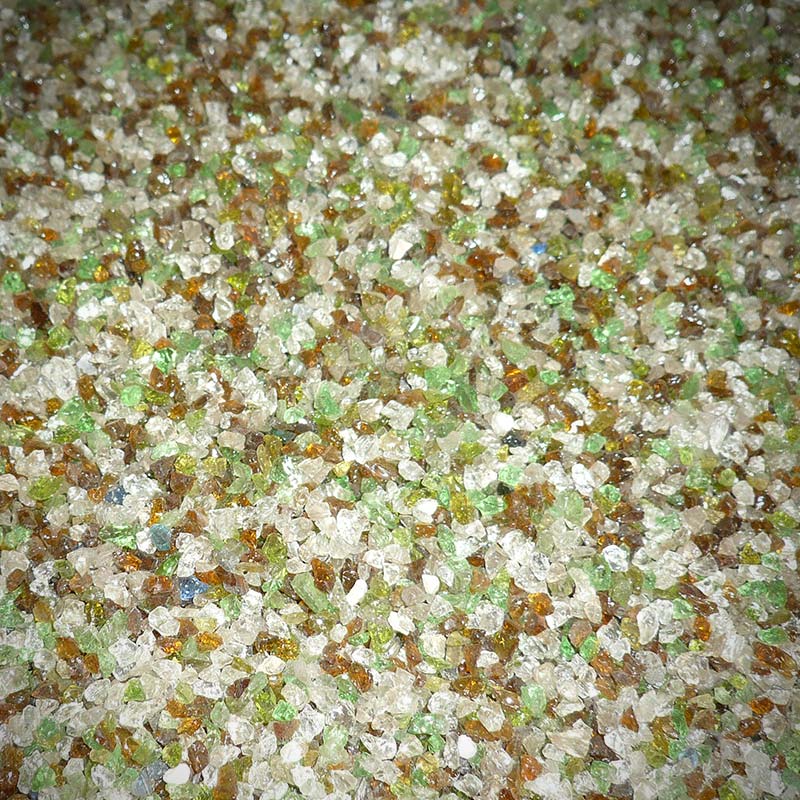

Sand/Coarse Grit

Products

Sand/Coarse Grit

Specific example size: 0.5-1.4mm

  • Primary Implosion, coarse screening to remove non-glass contaminates, secondary Implosion followed by air density separation and fine screening
  • Multiple sizes available from a single screener
  • Material must be dry to achieve effective screening at fine sizes

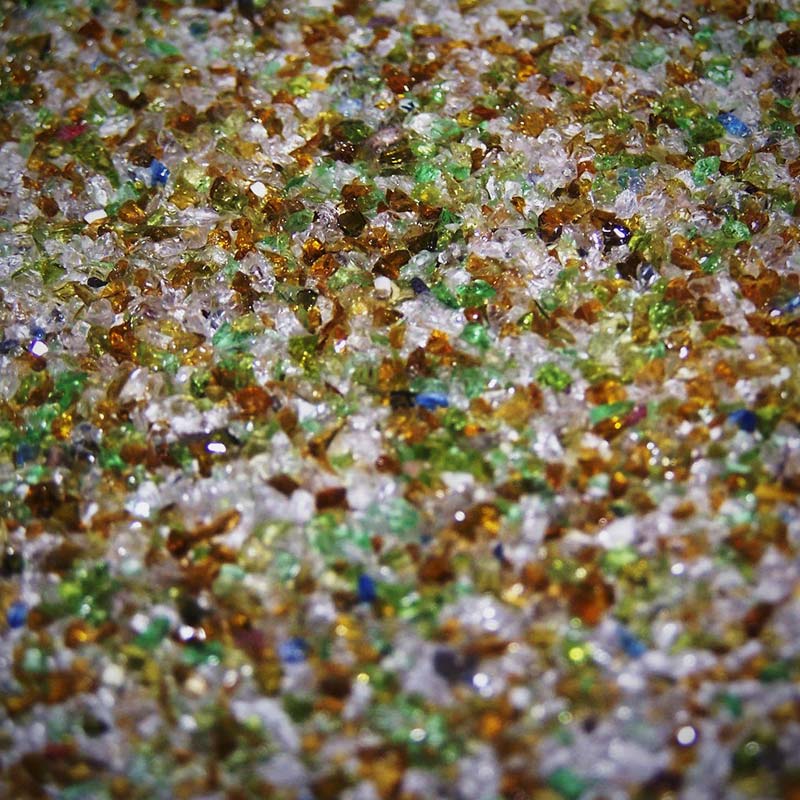

Fully Refined

Products

Fully Refined

Specific example size: 1.4-3mm

Fully refined glass cullet; produced by Imploding the glass component of a mixed glass feedstock to liberate any non-glass and to utilise size separation to remove the non-glass contaminates. Once the majority of non-glass material is removed the material is pyro dried removing all remaining non-glass and organics. Once cooled the material is further size reduced and screened into specific fractions to client's requirements.

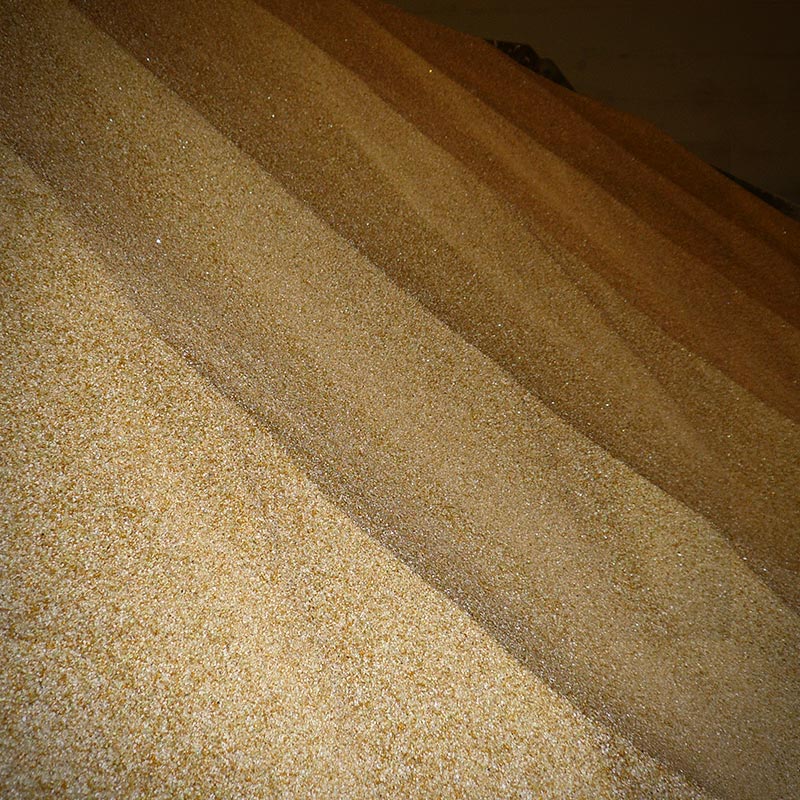

Fully Refined Fine Sands & Powders

Products

Fully Refined Sands

Example size: 1.5mm

Fully refined sterile glass cullet from a purification plant is subjected to further processing by a mill. This produces fine sands and powders down to 75┬Ám.
