Products

Products

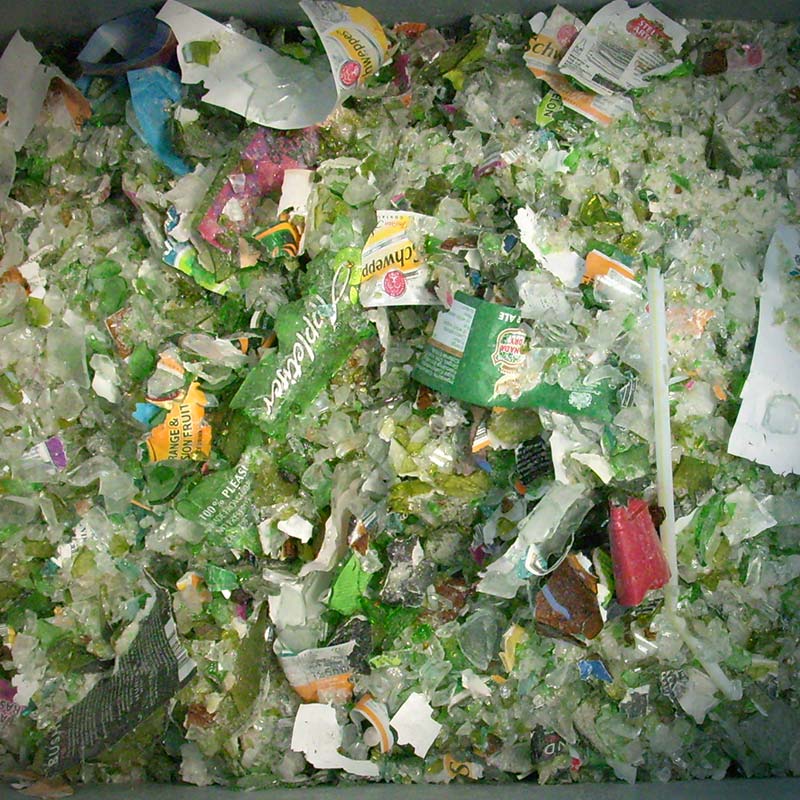

Unscreened

• Implosion only
• Mixture of sizes of sharp free glass cullet from <12mm on standard Imploder settings
• Non-glass contamination remains the same as it was in the feedstock, glass liberated from these items during the Implosion process.
• Non-glass can be easily separated post process such as caps, labels and corks from a container glass feedstock for example.

Products

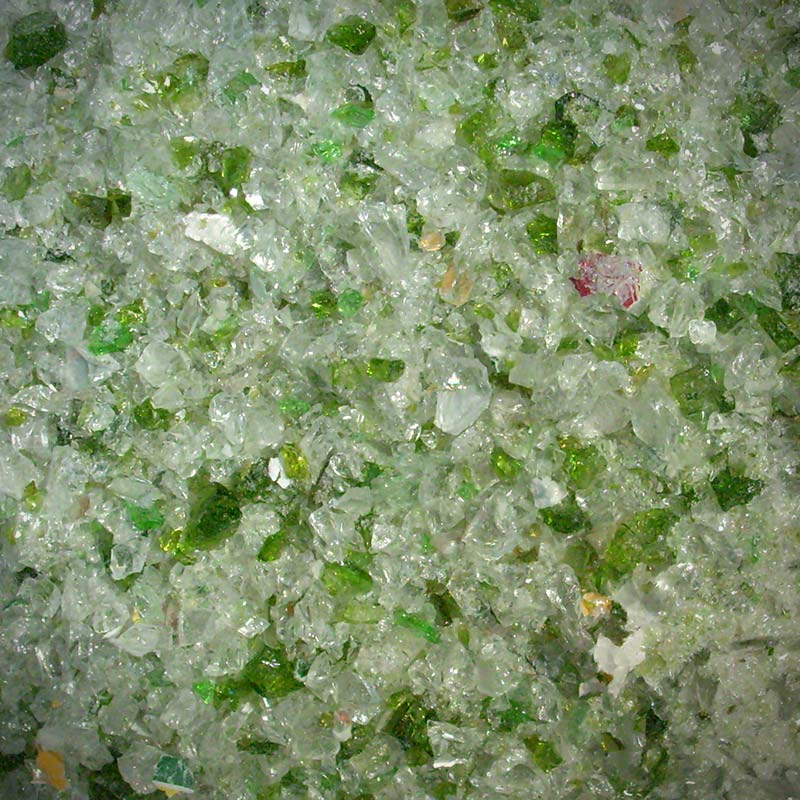

Screened Coarse

Example size: 8-12mm

• Imploded and screened
• Screened at 12mm (dependant on contamination levels) the majority of non-glass contamination can be removed.
• Further screening can separate the glass in to additional size fractions.

Products

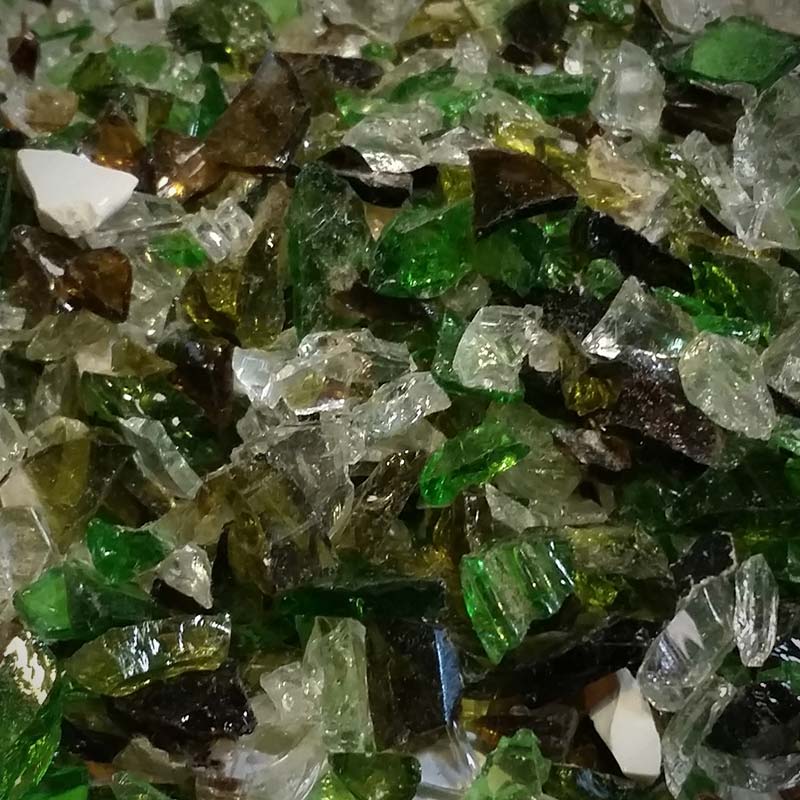

Density Separated

Example size: +10mm (light fraction removed)

• Imploded, screened and air density separated
• Glass is subjected to air density separation
• Material must be screened before density separation
• Light fraction and glass components are separated from each other leaving a much cleaner product.

Products

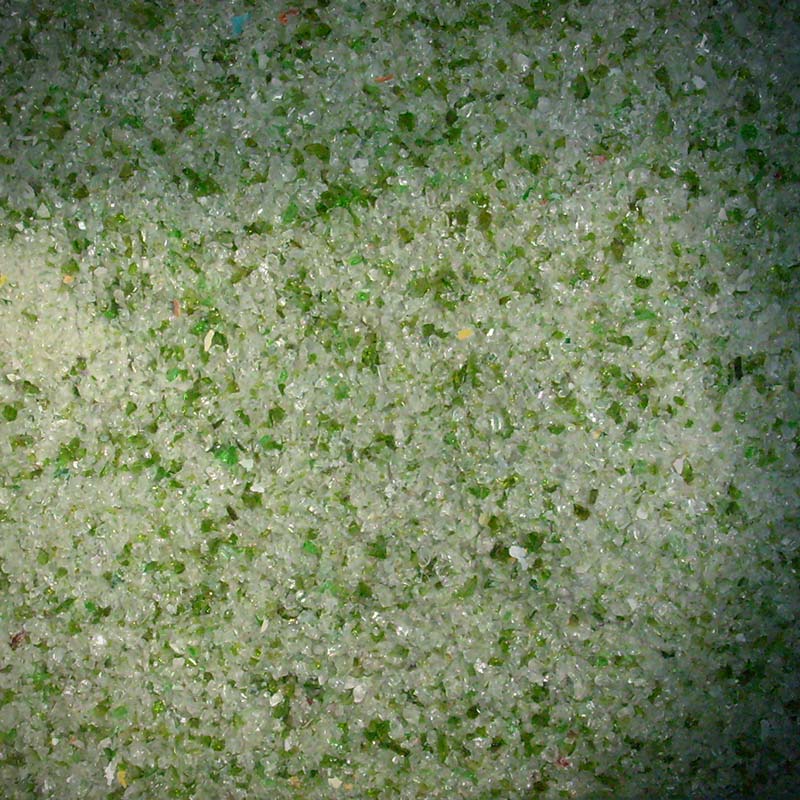

Screened Fine Product

Example size: <5mm

• Imploded and screened
• Almost all non-glass contamination is removed at this fraction, only minor amount of light fraction material remains.
• Air density separation can remove remaining light fraction

Products

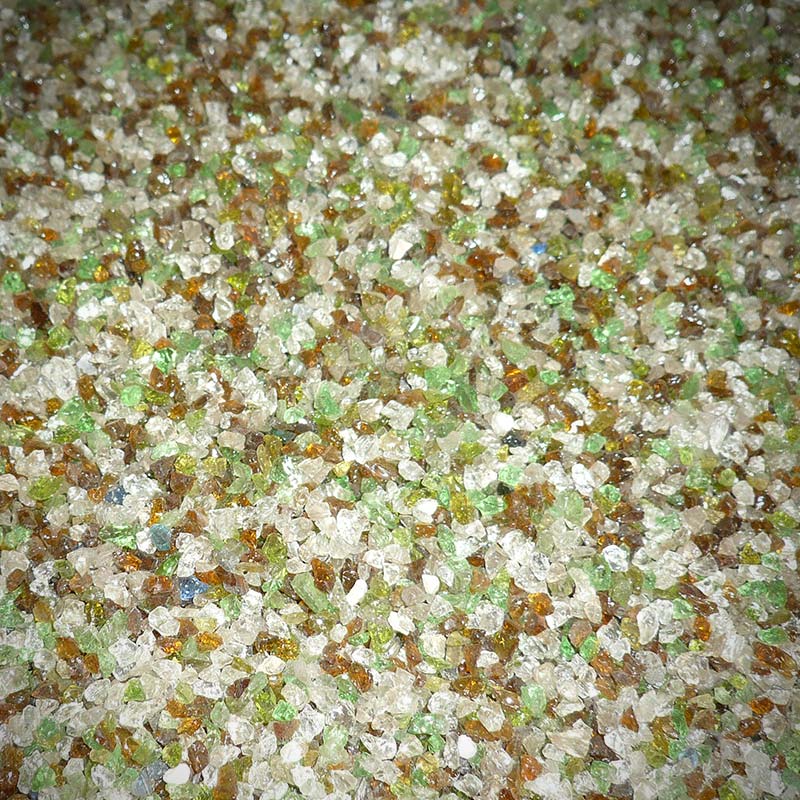

Sand/Coarse Grit

Specific example size: 0.5-1.4mm

• Primary Implosion, coarse screening to remove non-glass contaminates, secondary Implosion followed by air density separation and fine screening
• Multiple sizes available from a single screener
• Material must be dry to achieve effective screening at fine sizes

Products

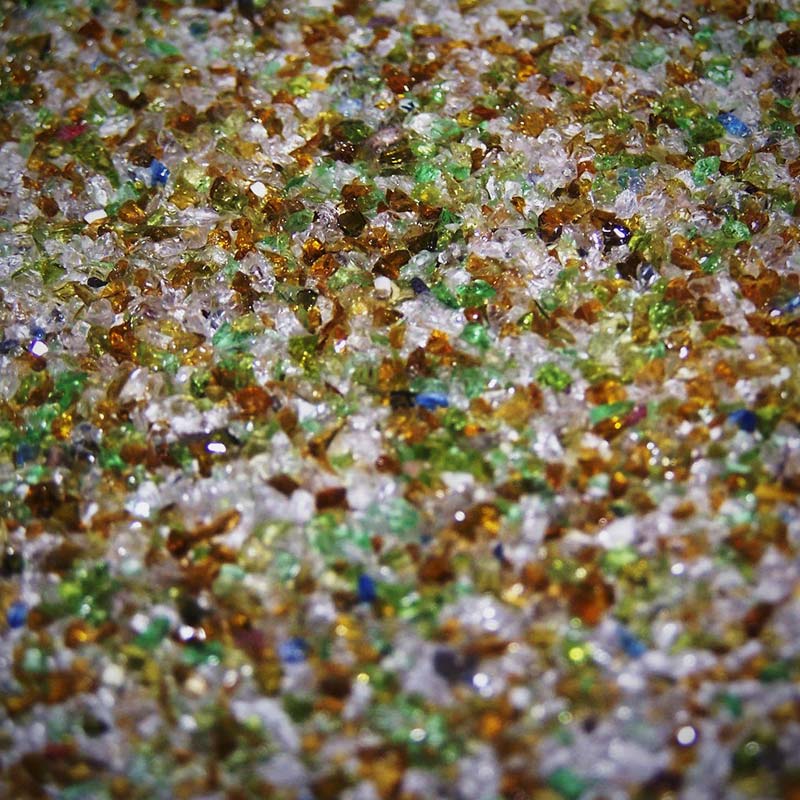

Fully Refined

Specific example size: 1.4-3mm

Fully refined glass cullet; produced by Imploding the glass component of a mixed glass feedstock to liberate any non-glass and to utilise size separation to remove the non-glass contaminates. Once the majority of non-glass material is removed the material is pyro dried removing all remaining non-glass and organics. Once cooled the material is further size reduced and screened into specific fractions to client's requirements.

Products

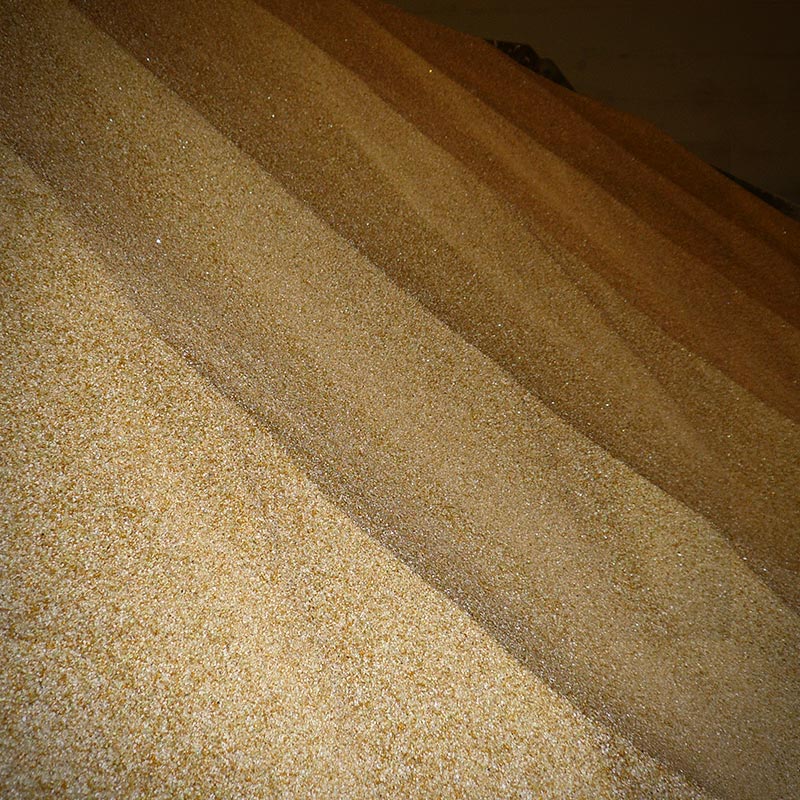

Fully Refined Sands

Example size: 1.5mm

Fully refined sterile glass cullet from a purification plant is subjected to further processing by a mill. This produces fine sands and powders down to 75µm.
